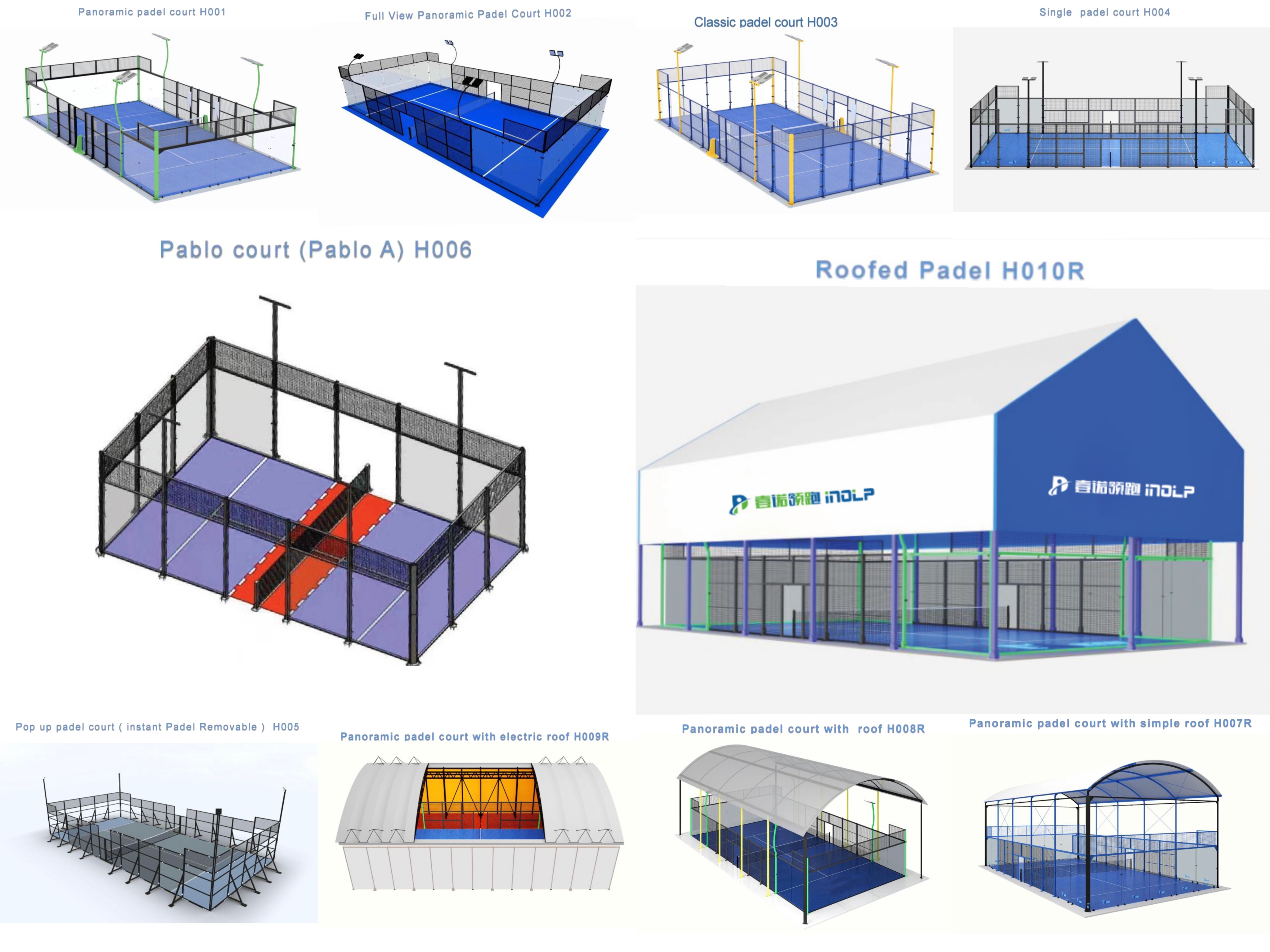

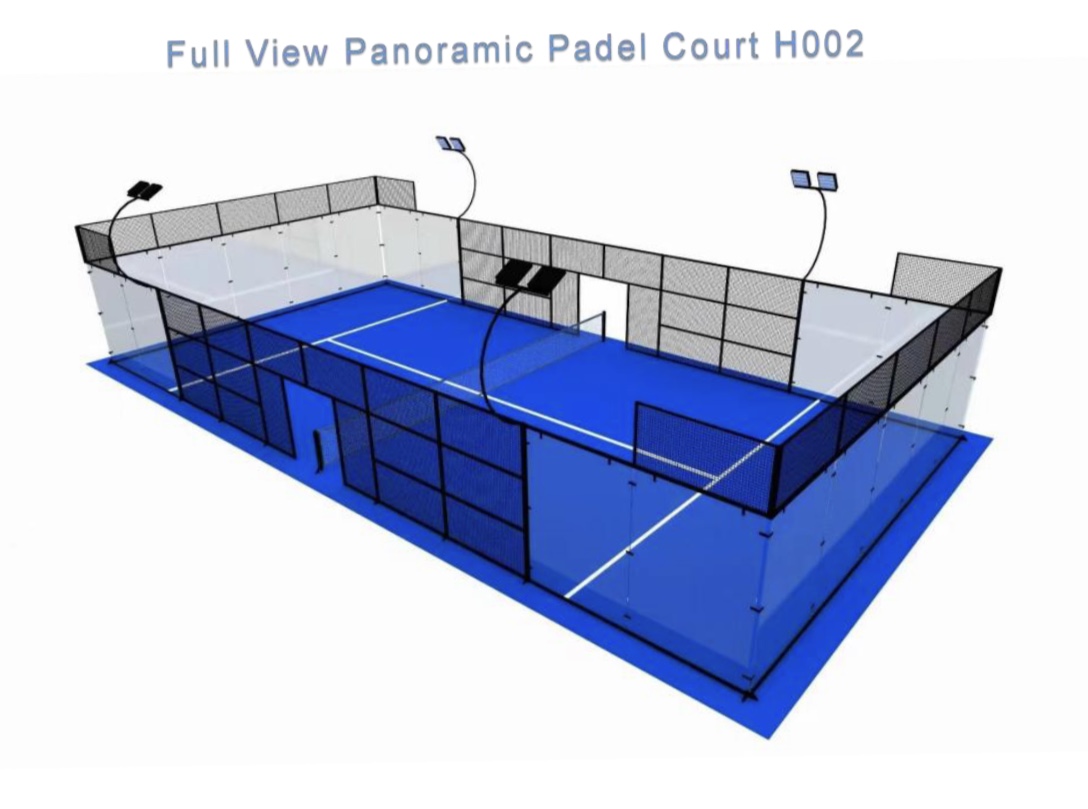

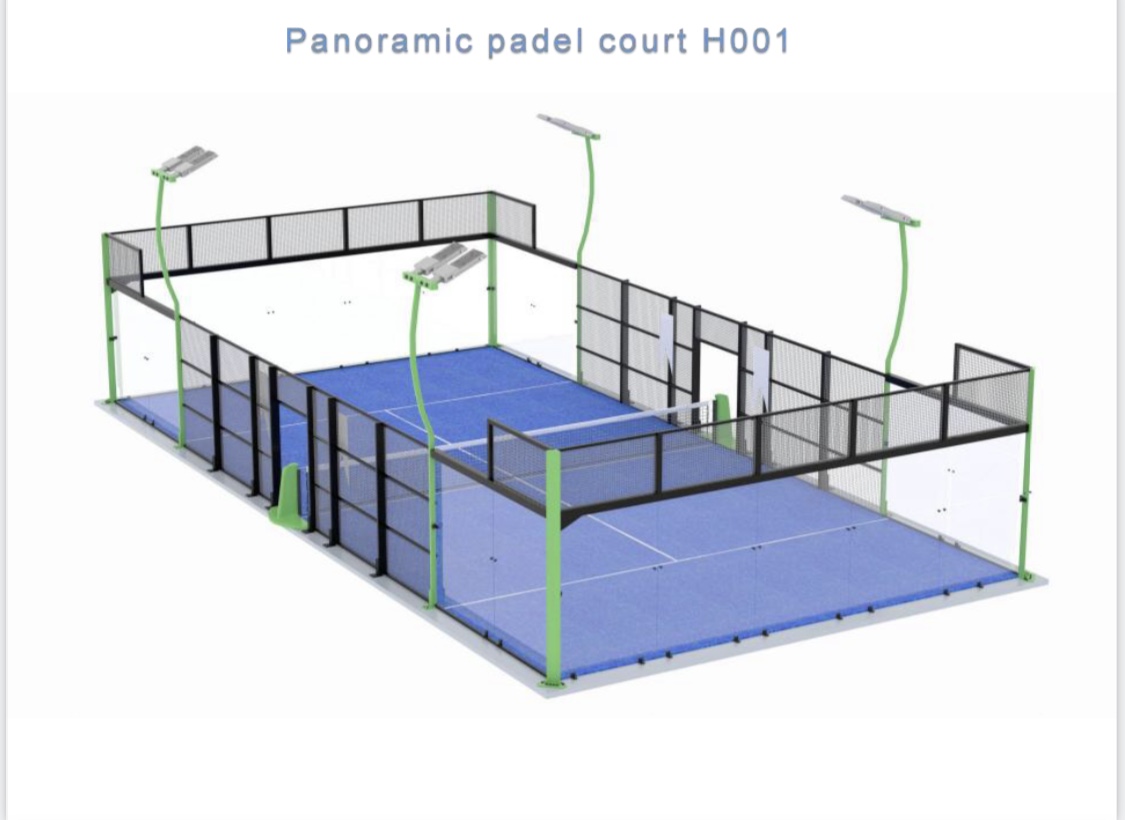

Panoramic Models (H001, H001A, H002, H007R-H010R): Boast a spacious 20m×10m layout, ideal for standard matches and group activities .
Single Court (H004): Compact 20m×6m size, perfect for limited spaces without compromising gameplay .
Pablo Court (H006): Intimate 10m×6m design, suitable for small groups or private use .
Pop-up Court (H005): Removable 20m×10m structure, offering flexibility for temporary setups .
Playing Surface: Choose between high-quality artificial grass or interlocking PP+TPV materials. The artificial grass features 13mm monofilament curly PE yarn (8000Dtex), 52500 stitches/m², and a triple-layer backing with SBR latex coating, ensuring excellent ball bounce and wear resistance (0.5-0.7 wear rate) .
Structural Frame: Galvanized steel pipes (100mm×50mm×3mm for columns/beams) with electrostatic powder coating (0.8-1mm thickness) resist corrosion and UV damage, available in colors like black, orange, green, and blue .
All-Weather Performance: Equipped with efficient drainage systems—10-15cm inclined concrete subbase with 0.5% slope ensures rapid water discharge, making courts usable even in rainy conditions .
Glass & Protection: Premium explosion-proof tempered glass (12mm thick, 1994mm×2994mm size) from top brands (Xglass, XYglass) ensures impact resistance. For H001A, iron sheets replace corner codes, paired with glass glue for "traceless" and shatter-proof connections .
Lighting System: 4 sets of LED flood lights (each with two 200W bulbs) provide 300lux illumination, with 6000mm lamp posts embedded in the fence to avoid interference with gameplay .
Secure Fittings: All connectors (screws, angle codes, bolts) are 304 stainless steel, paired with 6mm silicon cushions and polycarbonate connectors for stability and weather resistance .

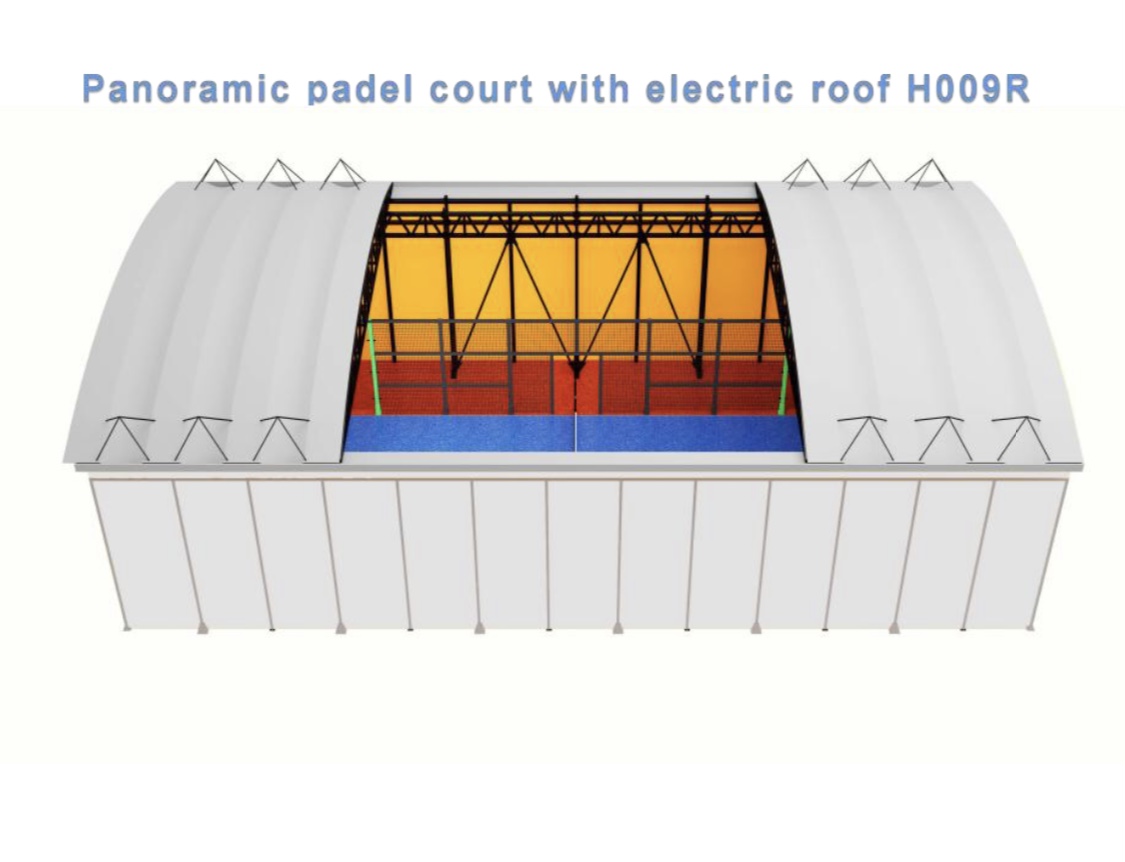

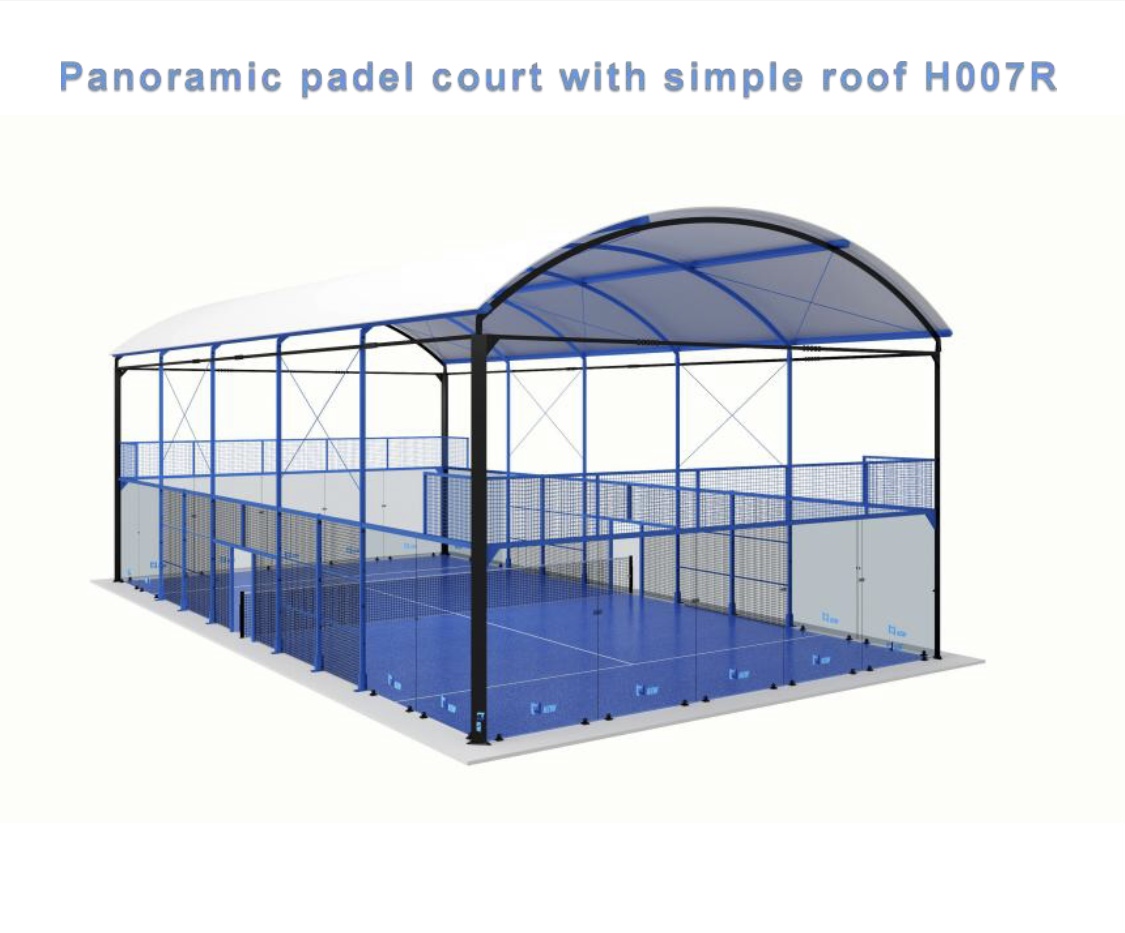

Roofed Models (H007R-H010R): Feature durable PVC covers (550g) in colors like black, green, and blue, with H009R offering an electric roof for adjustable weather protection .
Pop-up Court (H005): Uses UV-protected polycarbonate (PC) boards (10mm thick) for easy assembly and disassembly, ideal for events or temporary installations .
Customization: Turf and frame colors include sky blue, dark blue, green, and purple, with optional logo printing on corner advertising boards for branding .
